Benchmarking¶
Open-TYNDP includes a structured benchmarking framework that runs automatically with every workflow execution. It provides systematic, reproducible comparisons of Open-TYNDP model outcomes against official TYNDP 2024 reference data for both the Scenario Building (SB) and Cost-Benefit Analysis (CBA) phases.
- Scenario Building outcomes are compared against the TYNDP 2024 Market Model Output Files and the TYNDP 2024 Final Scenario Report.
- Cost-Benefit Analysis indicators are benchmarked for all calculated indicators and all projects against the official TYNDP 2024 CBA results.
Benchmarking results continue to be published with every release on Zenodo (currently only Scenario Building results). View the project website for a detailed explanation of the results.
Warning
Open-TYNDP is under active development and is not yet feature-complete. As of v0.7, Open-TYNDP was successfully benchmarked against TYNDP 2024 (see outcomes). The current development status and the general Limitations are important to understand before using the model.
Benchmarking Methodology¶
The benchmarking is based on the methodology proposed by Wen et al. (2022). This methodology provides a multi-criteria approach to ensure:
- the diversity (each indicator has its own added value),
- the effectiveness (each indicator provides essential and correct information),
- the robustness (against diverse units and orders of magnitude), and
- the compatibility (can be used to compare across countries) of the selected set of indicators.
This methodology defines the following accuracy indicators:
- Missing: Count of carriers / sectors dropped due to missing values.
- sMPE (Symmetric Mean Percentage Error): Indicates the direction of the deviation, showing if outputs are overall overestimated or underestimated.
- sMAPE (Symmetric Mean Absolute Percentage Error): Indicates the absolute magnitude of the deviations, avoiding the cancellation of negative and positive errors.
- sMdAPE (Symmetric Median Absolute Percentage Error): Provides skewness information to complement sMAPE.
- RMSLE (Root Mean Square Logarithmic Error): Complements the percentage errors by showing logarithmic deviation values.
- Growth error: Shows the error on the temporal scale. This indicator is not applied to dynamic time series (i.e. hourly generation profiles).
Scenario Building Benchmarking¶
Metrics¶
The following metrics from the TYNDP 2024 Scenarios Report are considered relevant for Scenario Building benchmarking:
-
Exogenous inputs:
-
Final energy demand by fuel, EU27 (TWh), (Fig 5, p24 and Fig 51, p63)
- Electricity demand per sector, EU27 (TWh), (Fig 6, p25 and Fig 52, p63)
- Methane demand by sector, EU27 (TWh), (Fig 8, p27 and Fig 53, p64)
-
Hydrogen demand by sector, EU27 (TWh), (Fig 10, p28 and Fig 54, p64)
-
Investment and dispatch modelling outputs:
-
Net installed capacity for electricity generation, EU27 (GW), (Fig 25, p39 and Fig 55, p65)
- Electricity generation, EU27 (TWh), (Fig 26, p39 and Fig 56, p65)
- Methane supply, EU27 (TWh), (Fig 32, p45 and Fig 57, p66)
- Hydrogen supply, EU27 (TWh), (Fig 33, p46 and Fig 58, p67)
- Biomass supply, EU27 (TWh), (Fig 59, p67)
- Energy imports, EU27 (TWh), (Fig 40, p51 and Fig 60, p68)
- Hourly generation profile of power generation, (Fig 30, p35)
The data is published in the Scenarios package. In addition to the Scenarios Report data, data from the Market Model Outputs and the Visualisation Platform are also processed and included in the relevant figures.
Hourly time series from TYNDP 2024 are aggregated to match the temporal resolution of
Open-TYNDP. Summary tables are computed for both overall and per-carrier results. Spatially
resolved benchmarking at bus and country level is available via the
benchmarking.spatial.by_bus and benchmarking.spatial.by_country configuration keys.
Workflow¶
The SB benchmarking workflow is controlled by config/benchmarking.default.yaml.

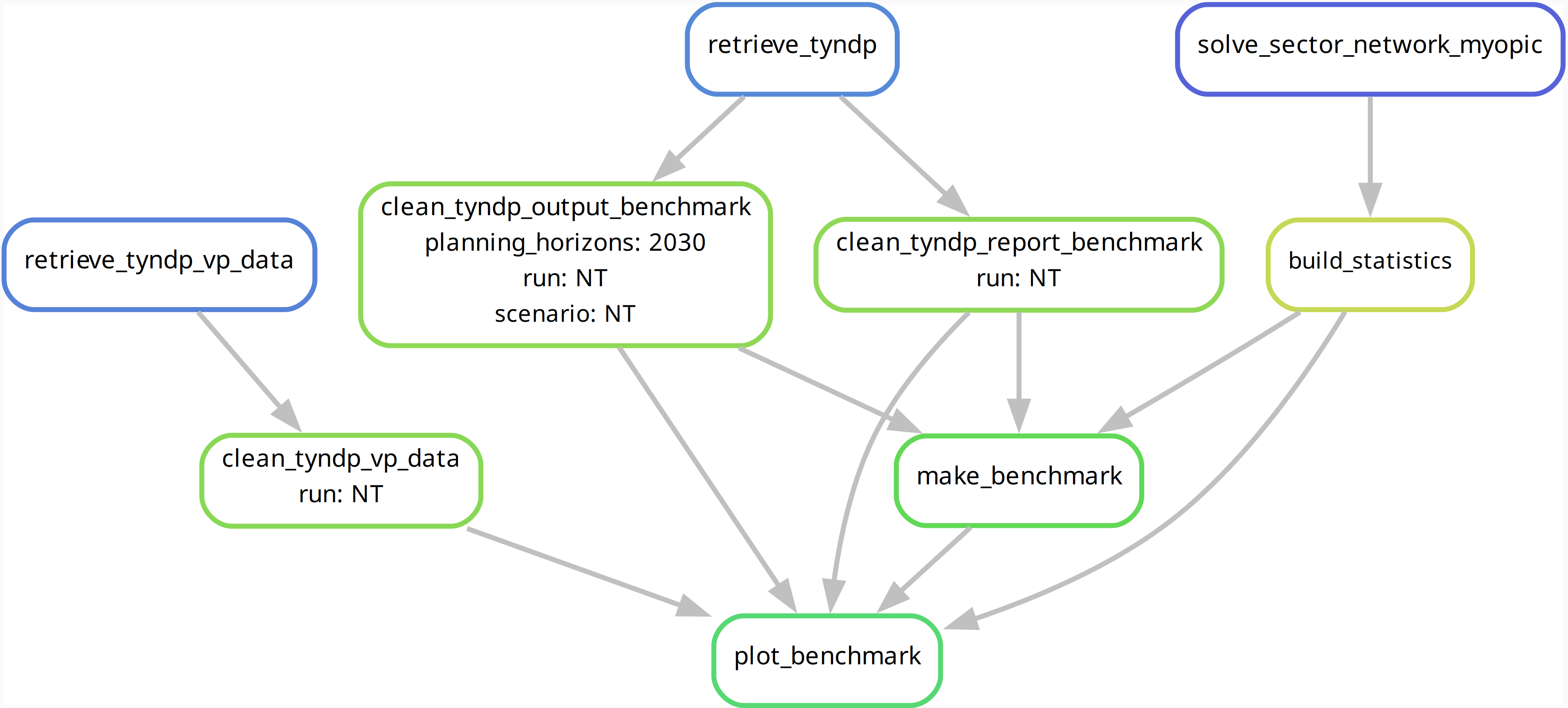

retrieve_tyndp: Retrieve the TYNDP 2024 Scenarios Report Data Figures package.clean_tyndp_report_benchmark: Read and process the raw Scenarios Report data into a long-format table.clean_tyndp_vp_data: Read and process the Visualisation Platform data into a long-format table.clean_tyndp_output_benchmark: Read and process the Market Model Outputs, including cross-border flows, prices, and country and EU27 level values.build_statistics: Compute benchmarking statistics from the optimised network for every planning horizon.make_benchmark: Compute accuracy indicators comparing model outcomes against the Market Model Outputs, Scenarios Report, and Visualisation Platform.make_benchmarks: Collect outputs from allmake_benchmarkruns.plot_benchmark: Generate visualisation outputs.plot_benchmarks: Collect outputs from allplot_benchmarkruns.
The full set of benchmarking output files is stored under results/benchmarks/tyndp-2024/:
resources/— processed benchmarking inputs from both Open-TYNDP and TYNDP 2024.csvs_s_{clusters}_{opts}_{sector_opts}_all_years/— quantitative tables.graphics_s_{clusters}_{opts}_{sector_opts}_all_years/— figures.kpis_s_{clusters}_{opts}_{sector_opts}_all_years_by_bus.csv— summary table aggregated from bus level KPIs.kpis_s_{clusters}_{opts}_{sector_opts}_all_years_by_country.csv— summary table aggregated from country level KPIs.kpis_s_{clusters}_{opts}_{sector_opts}_all_years_by_bus.pdf— summary figure aggregated from bus level KPIs.kpis_s_{clusters}_{opts}_{sector_opts}_all_years_by_country.pdf— summary figure aggregated from country level KPIs.
The structure of these outputs can be validated in the published preliminary benchmarking results on Zenodo.
Outputs¶
Example of indicators extracted from power_generation_cy2009_s_all___all_years.csv by countries
for the NT scenario with hourly resolution:
| Carrier | sMPE | sMAPE | sMdAPE | RMSLE | Growth Error | Missing countries | reference | version |
|---|---|---|---|---|---|---|---|---|
| Coal + other fossil (incl. biofuels) | 0.3 | 0.76 | 0.25 | 8.92 | -1.87 | 0 | TYNDP 2024 Market Model Outputs | v0.7.1 |
| Hydro (exc. pump storage) | 0.01 | 0.03 | 0.0 | 0.06 | 0.02 | 0 | TYNDP 2024 Market Model Outputs | v0.7.1 |
| Hydrogen | -0.93 | 1.19 | 1.21 | 6.0 | -0.51 | 1 | TYNDP 2024 Market Model Outputs | v0.7.1 |
| Methane (incl. biofuels) | -0.21 | 0.34 | 0.17 | 0.65 | 0.16 | 0 | TYNDP 2024 Market Model Outputs | v0.7.1 |
| Nuclear | 0.08 | 0.08 | 0.07 | 0.08 | 0 | 0 | TYNDP 2024 Market Model Outputs | v0.7.1 |
| Oil (incl. biofuels) | 0.83 | 1.18 | 0.95 | 10.68 | 0.12 | 0 | TYNDP 2024 Market Model Outputs | v0.7.1 |
| Other non-res | -0.23 | 0.31 | 0.06 | 1.16 | 0 | 0 | TYNDP 2024 Market Model Outputs | v0.7.1 |
| Other res | 0 | 0 | 0 | 0 | 0 | 0 | TYNDP 2024 Market Model Outputs | v0.7.1 |
| Solar | 0 | 0.01 | 0 | 0.02 | 0 | 0 | TYNDP 2024 Market Model Outputs | v0.7.1 |
| Wind offshore | -0.1 | 0.11 | 0 | 6.23 | 0.01 | 0 | TYNDP 2024 Market Model Outputs | v0.7.1 |
| Wind onshore | 0 | 0 | 0 | 0 | 0 | 0 | TYNDP 2024 Market Model Outputs | v0.7.1 |
| Demand shedding | 1.63 | 1.8 | 2.0 | 13.51 | 0.03 | 0 | TYNDP 2024 Market Model Outputs | v0.7.1 |
| Solar thermal | — | — | — | — | — | 0 | TYNDP 2024 Market Model Outputs | v0.7.1 |

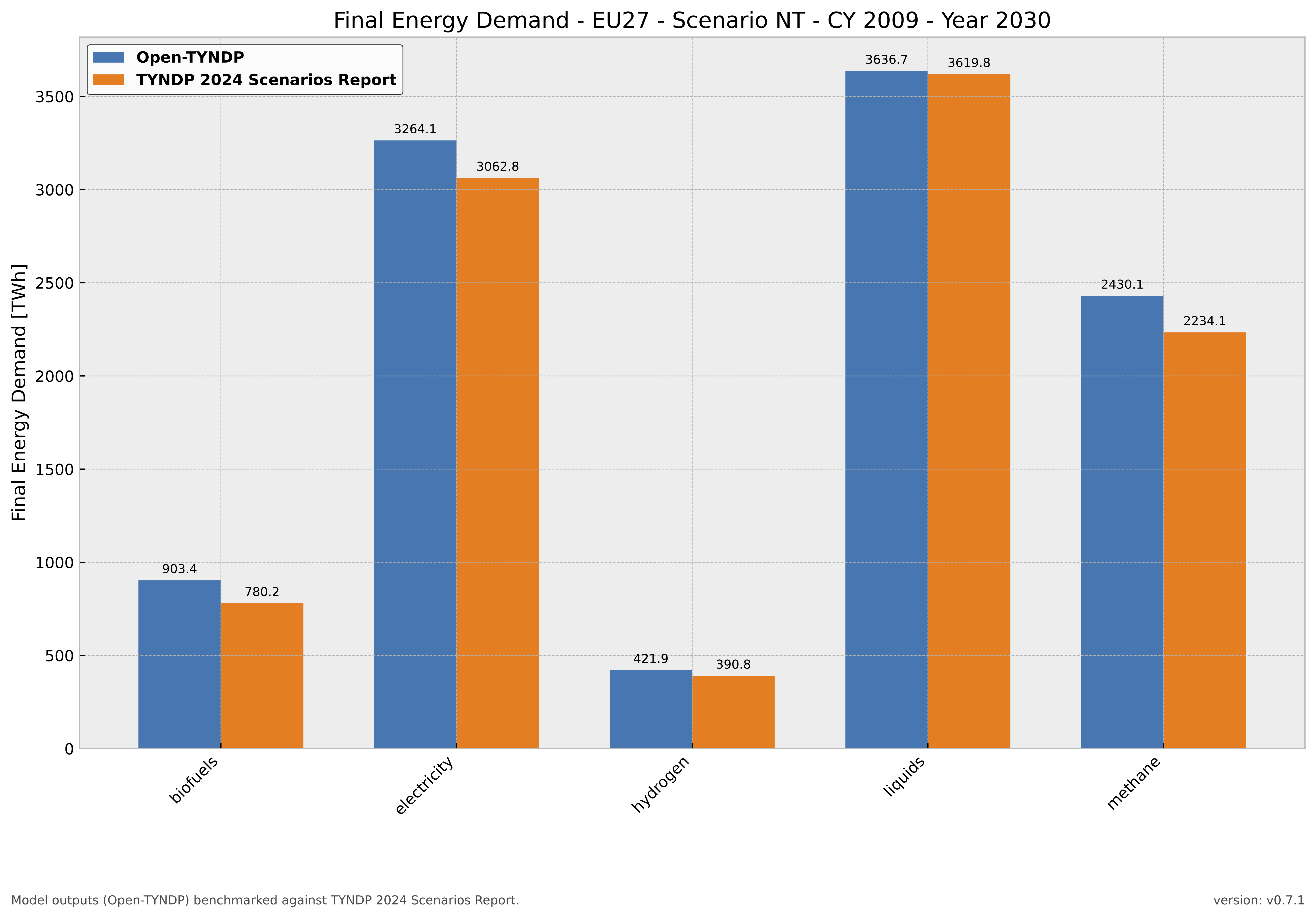

Example of figure created for the final energy demand for the NT scenario in 2030 with hourly resolution:

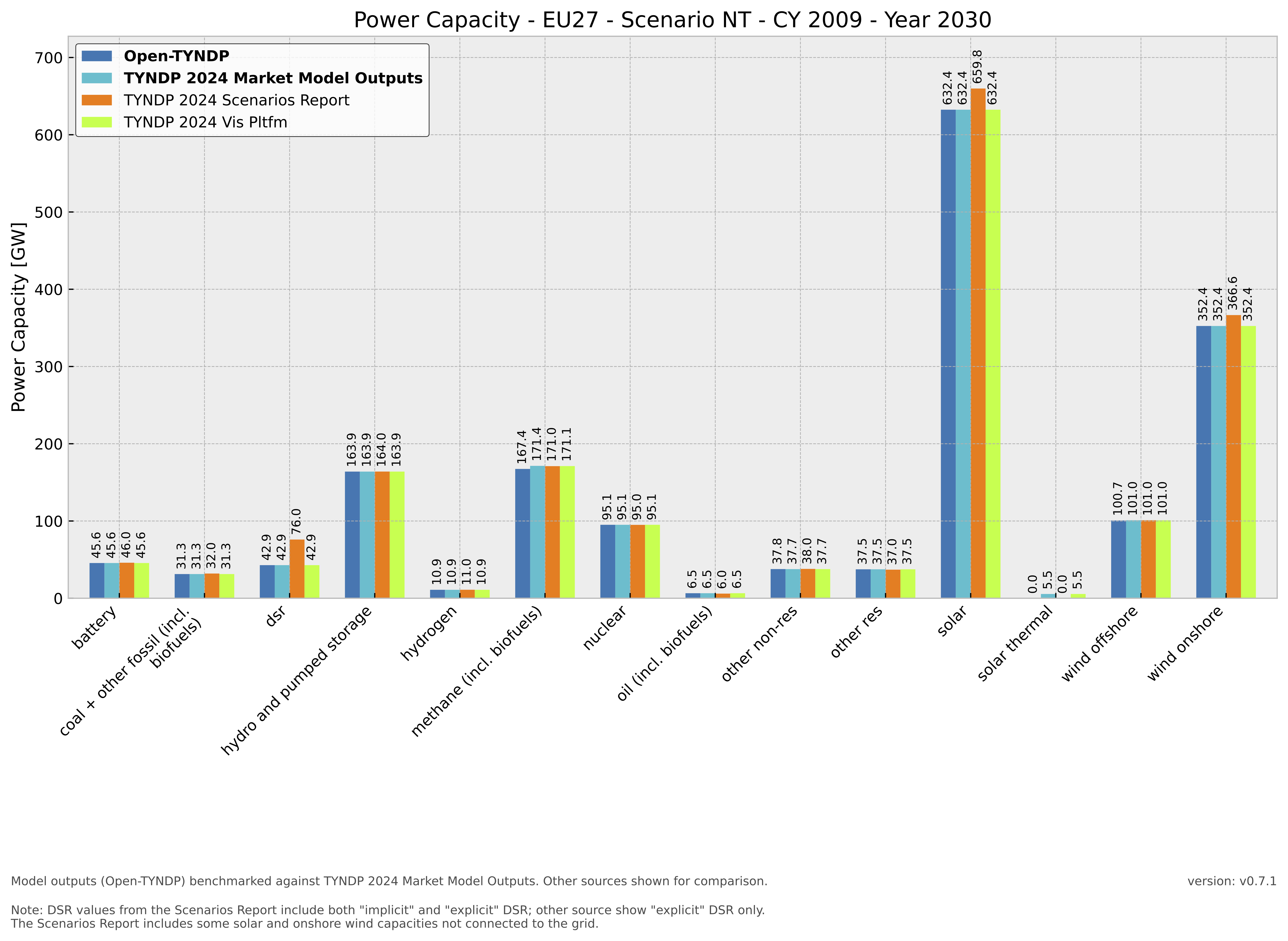

Example of figure including Visualisation Platform data created for the power capacity for the NT scenario in 2030 with hourly resolution:

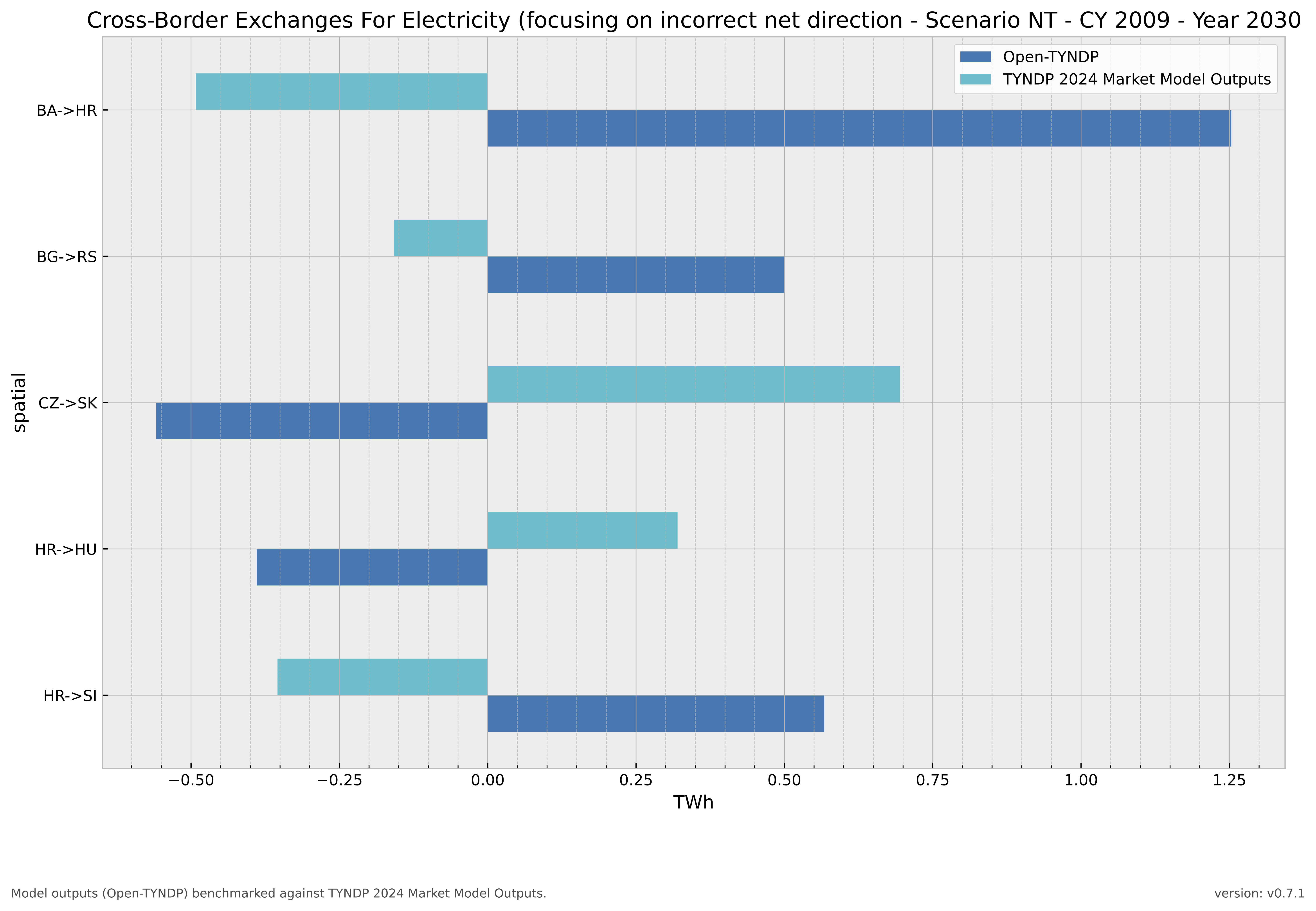

Example of figure created for the cross-border flows between countries (focusing on incorrect net direction) for the NT scenario in 2030 with hourly resolution:
Example of figure created for the electricity prices by country for the NT scenario in 2030 with hourly resolution:

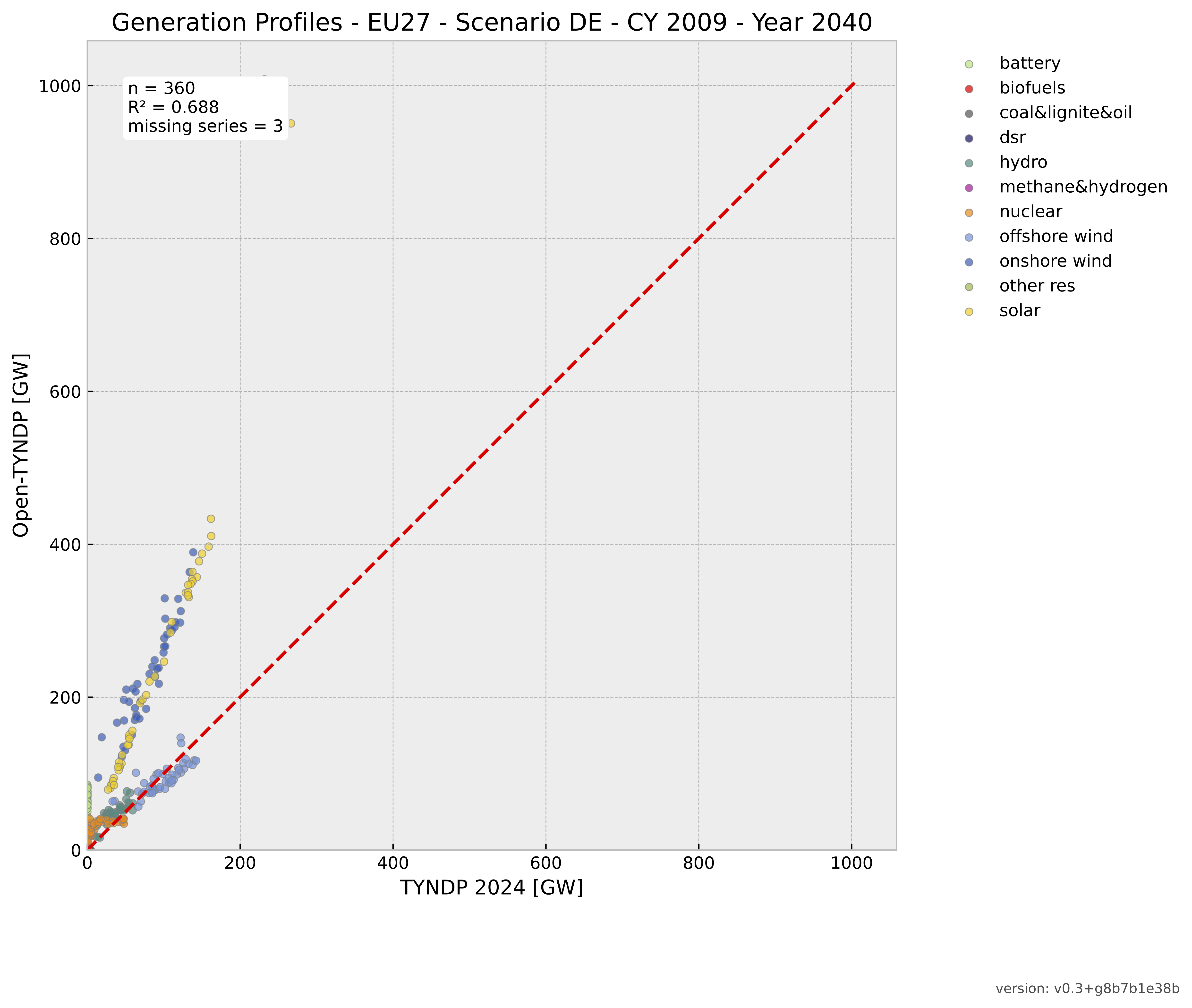

Example of figure created for the generation profiles for the DE scenario in 2040 with 45SEG:
Example of summary indicators extracted from kpis_s_all__all_years_by_country.csv for the NT
scenario with hourly resolution:
| Metric | sMPE | sMAPE | sMdAPE | RMSLE | Growth Error | Missing carriers | Missing countries | reference | version |
|---|---|---|---|---|---|---|---|---|---|
| biomass_supply | 0.14 | 0.14 | 0.11 | 0.2 | 0 | 2 | 0 | TYNDP 2024 Scenarios Report | v0.7.1 |
| crossborder_electricity | -0.03 | 0.56 | 0.3 | 2.29 | 0 | 0 | 27 | TYNDP 2024 Market Model Outputs | v0.7.1 |
| crossborder_hydrogen | -0.02 | 0.31 | 0.13 | 0.47 | 0.05 | 0 | 1 | TYNDP 2024 Market Model Outputs | v0.7.1 |
| electricity_demand | 0 | 0 | 0 | 0 | 0 | 0 | 0 | TYNDP 2024 Market Model Outputs | v0.7.1 |
| electricity_demand_shedding_hours | 0.41 | 0.52 | 0 | 6.54 | 0.21 | 0 | 0 | TYNDP 2024 Market Model Outputs | v0.7.1 |
| electricity_price | 0.11 | 0.19 | 0.07 | 0.3 | 0.05 | 0 | 0 | TYNDP 2024 Market Model Outputs | v0.7.1 |
| electricity_price_excl_shed | -0.04 | 0.12 | 0.07 | 0.19 | -0.02 | 0 | 0 | TYNDP 2024 Market Model Outputs | v0.7.1 |
| energy_imports | 0.52 | 0.52 | 0.3 | 1.15 | 0.01 | 1 | 0 | TYNDP 2024 Scenarios Report | v0.7.1 |
| final_energy_demand | 0.11 | 0.11 | 0.09 | 0.15 | 0.01 | 0 | 0 | TYNDP 2024 Scenarios Report | v0.7.1 |
| generation_profiles | — | — | — | — | — | NA | NA | — | v0.7.1 |
| hydrogen_demand | -0.22 | 0.28 | 0 | 2.96 | 0 | 0 | 1 | TYNDP 2024 Market Model Outputs | v0.7.1 |
| hydrogen_demand_shedding_hours | 0.38 | 0.38 | 0 | 5.64 | 0 | 0 | 0 | TYNDP 2024 Market Model Outputs | v0.7.1 |
| hydrogen_price | 0.11 | 0.16 | 0.03 | 0.27 | 0 | 0 | 0 | TYNDP 2024 Market Model Outputs | v0.7.1 |
| hydrogen_price_excl_shed | 0.01 | 0.06 | 0.02 | 0.11 | 0 | 0 | 0 | TYNDP 2024 Market Model Outputs | v0.7.1 |
| hydrogen_supply | -0.15 | 0.38 | 0.13 | 2.05 | 0.06 | 1 | 0 | TYNDP 2024 Market Model Outputs | v0.7.1 |
| methane_demand | -0.1 | 0.17 | 0.16 | 0.21 | 0 | 0 | 0 | TYNDP 2024 Scenarios Report | v0.7.1 |
| methane_supply | 0.1 | 0.1 | 0.1 | 0.1 | 0 | 4 | 0 | TYNDP 2024 Scenarios Report | v0.7.1 |
| power_capacity | 0 | 0 | 0 | 0.01 | 0 | 1 | 0 | TYNDP 2024 Market Model Outputs | v0.7.1 |
| power_generation | 0.28 | 0.51 | 0.05 | 6.99 | 0 | 1 | 1 | TYNDP 2024 Market Model Outputs | v0.7.1 |
| Total (excl. time series) | 0.14 | 0.31 | 0.03 | 1.48 | 0 | 13 | — | — | v0.7.1 |

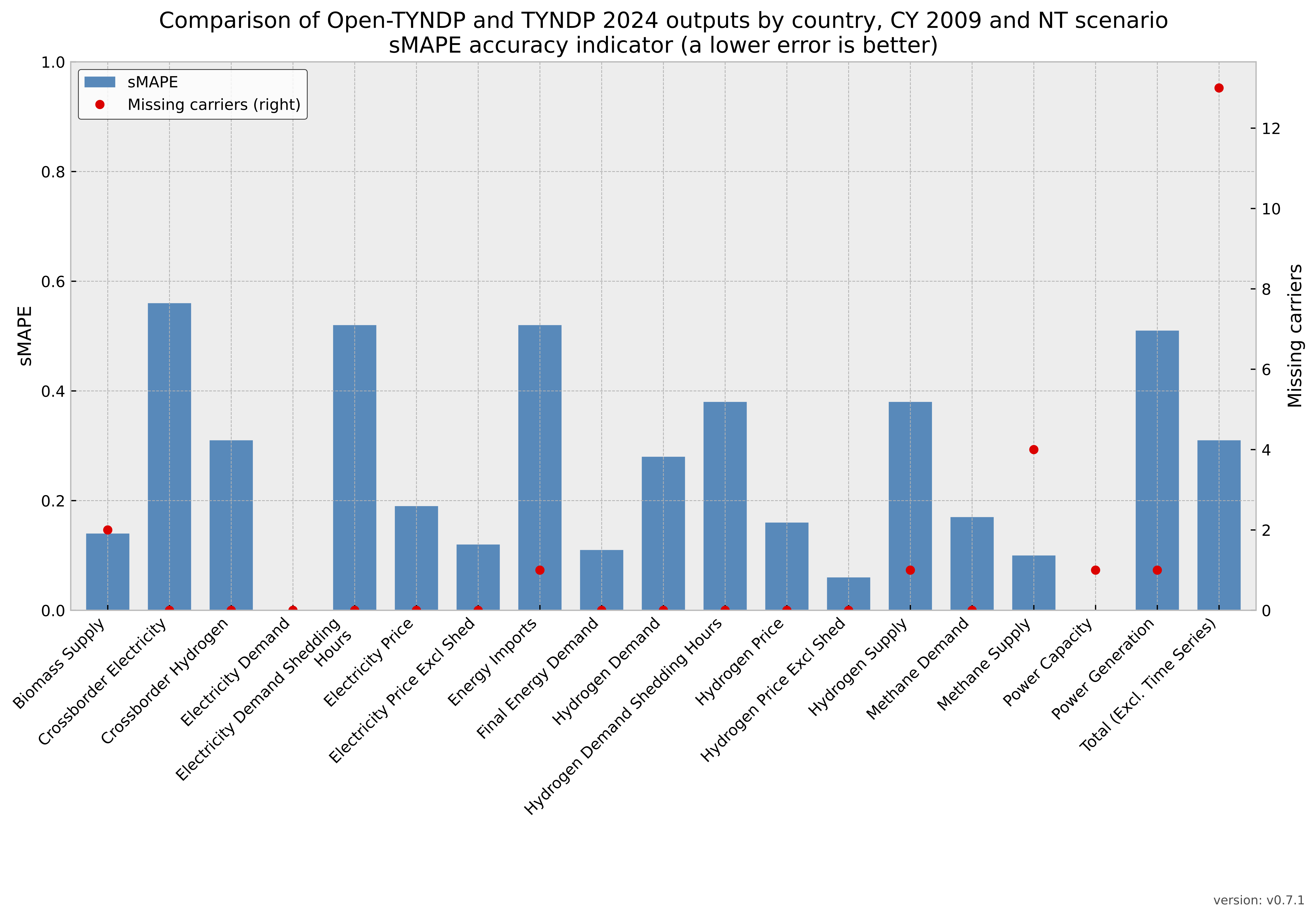

Example of summary figure created for the NT scenario with hourly resolution:
Naming conventions¶
To align naming conventions across data sources, Open-TYNDP uses a mapping table defined in tyndp_technology_map.csv. This table maps the different naming conventions between the Open-TYNDP, various input data sources and benchmarking tables. It contains the following columns:
- pemmdb_carrier: Higher level carrier names as listed in the PEMMDB v2.4 dataset.
- pemmdb_type: Specific carrier technology type as listed in the PEMMDB v2.4 dataset.
- pemmdb_hydro_inflows: Carrier names as listed in the PEMMDB v2.4 hydro inflows dataset.
- pecd_carrier: Carrier names as listed in the PECD v3.1 dataset.
- investment_dataset_carrier: Carrier names as listed in the TYNDP 2024 investment dataset.
- tyndp_output_carrier: Carrier names as listed in the TYNDP 2024 Market Model output files.
- tyndp_report_carrier: Carrier names as listed in the TYNDP 2024 Scenarios Report.
- tyndp_vp_carrier: Carrier names as listed on the TYNDP 2024 Visualization Platform.
- open_tyndp_carrier: Open-TYNDP carrier naming convention representing either an energy carrier or a technology, depending on the context.
- open_tyndp_index: Open-TYNDP technology naming convention found in the component index.
- open_tyndp_nice_name: Open-TYNDP nice names for better readability and aggregation of technologies for reporting purposes.
- benchmarking_capacity: Naming convention for the benchmarking framework's
power_capacitytable. - benchmarking_generation: Naming convention for the benchmarking framework's
power_generationtable. - benchmarking_generation_profiles: Naming convention for the benchmarking framework's
generation_profilestable. - benchmarking_fed: Naming convention for the benchmarking framework's
final_energy_demandtable. - benchmarking_elec_demand: Naming convention for the benchmarking framework's
electricity_demandtable. - benchmarking_ch4_demand: Naming convention for the benchmarking framework's
methane_demandtable. - benchmarking_h2_demand: Naming convention for the benchmarking framework's
hydrogen_demandtable. - benchmarking_ch4_supply: Naming convention for the benchmarking framework's
methane_supplytable. - benchmarking_h2_supply: Naming convention for the benchmarking framework's
hydrogen_supplytable. - benchmarking_biomass_supply: Naming convention for the benchmarking framework's
biomass_supplytable. - benchmarking_energy_imports: Naming convention for the benchmarking framework's
energy_importstable. - benchmarking_prices: Naming convention for the benchmarking framework's different
pricetables. - benchmarking_shed_hours: Naming convention for the benchmarking framework's
electricity_demand_shedding_hoursandhydrogen_demand_shedding_hourstables. - open_tyndp_type: Open-TYNDP technology type for grouping together detailed technologies if
electricity:group_tyndp_conventionalsis enabled in the configuration. - pypsa_eur_carrier: Corresponding PyPSA-Eur carrier/technology if applicable.
- comment: Any additional comments.
The complete technology mapping is shown below. Scroll horizontally and vertically to explore the table.
